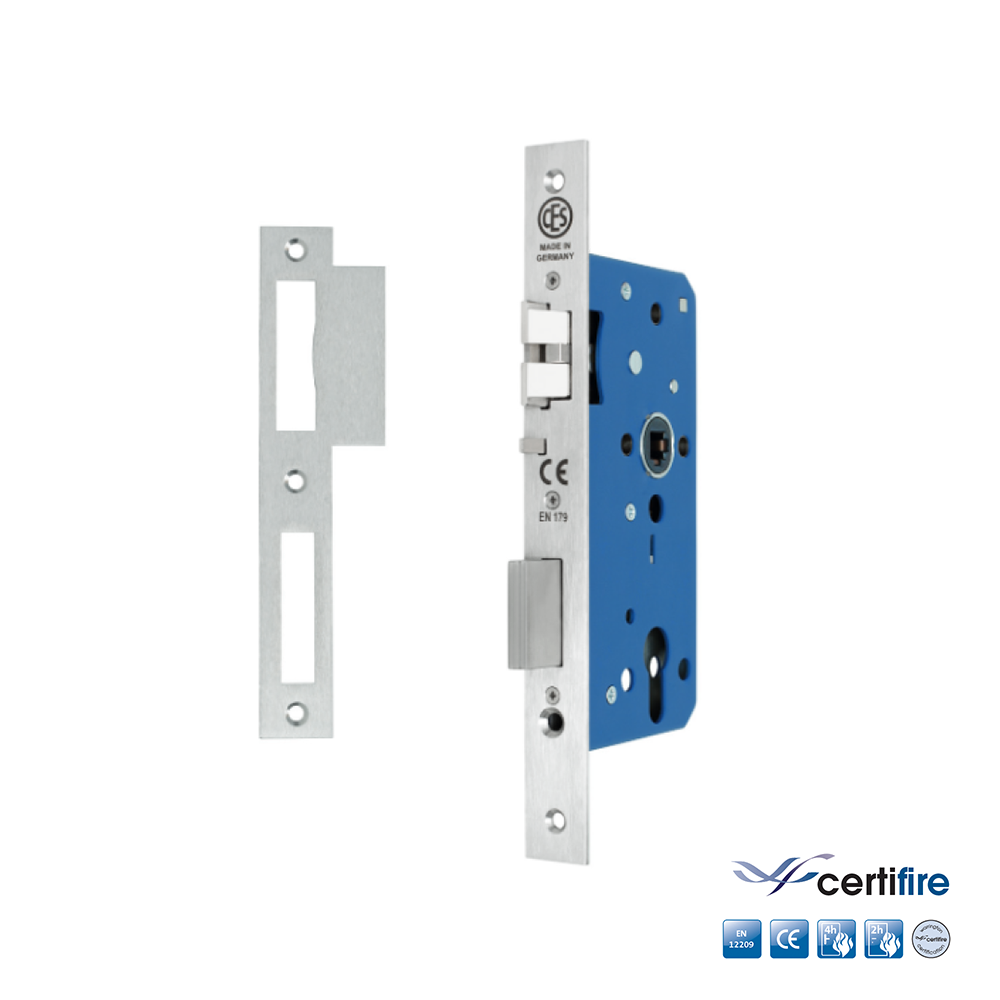

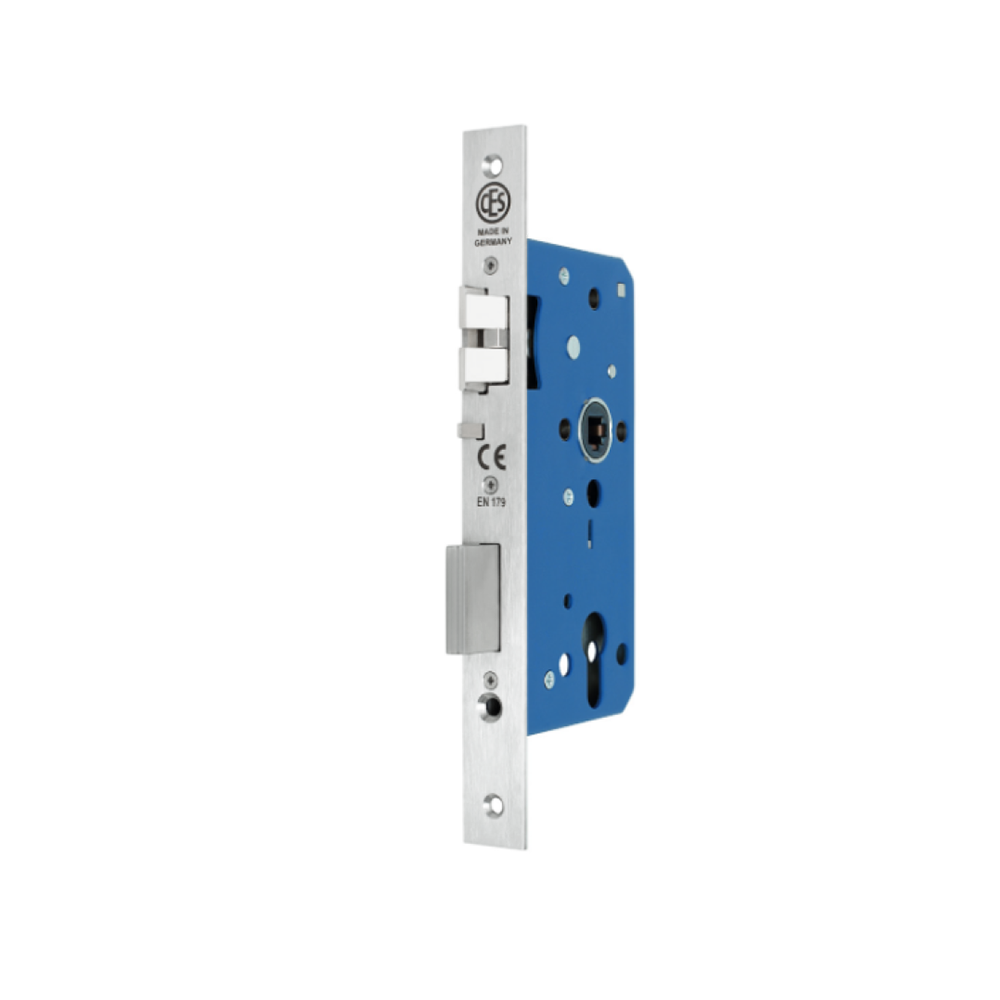

CESlocks 9100E-SP Mortise Escape Lock with Anti-Thrust Latch - Premium Class - Warrington Certifire Certificate - Made in Germany

Art. No. 9100E-SP
• Anti-Panic-Function "E"
• Anti-thrust latch as mechanical latchbolt blocking mechanism
• Prepared for euro-profile cylinder
• With transmission bar
• Handed LH or RH
• Forend finish: satin stainless steel (AISI 304)
• Lock case galvanized and blue lacquered

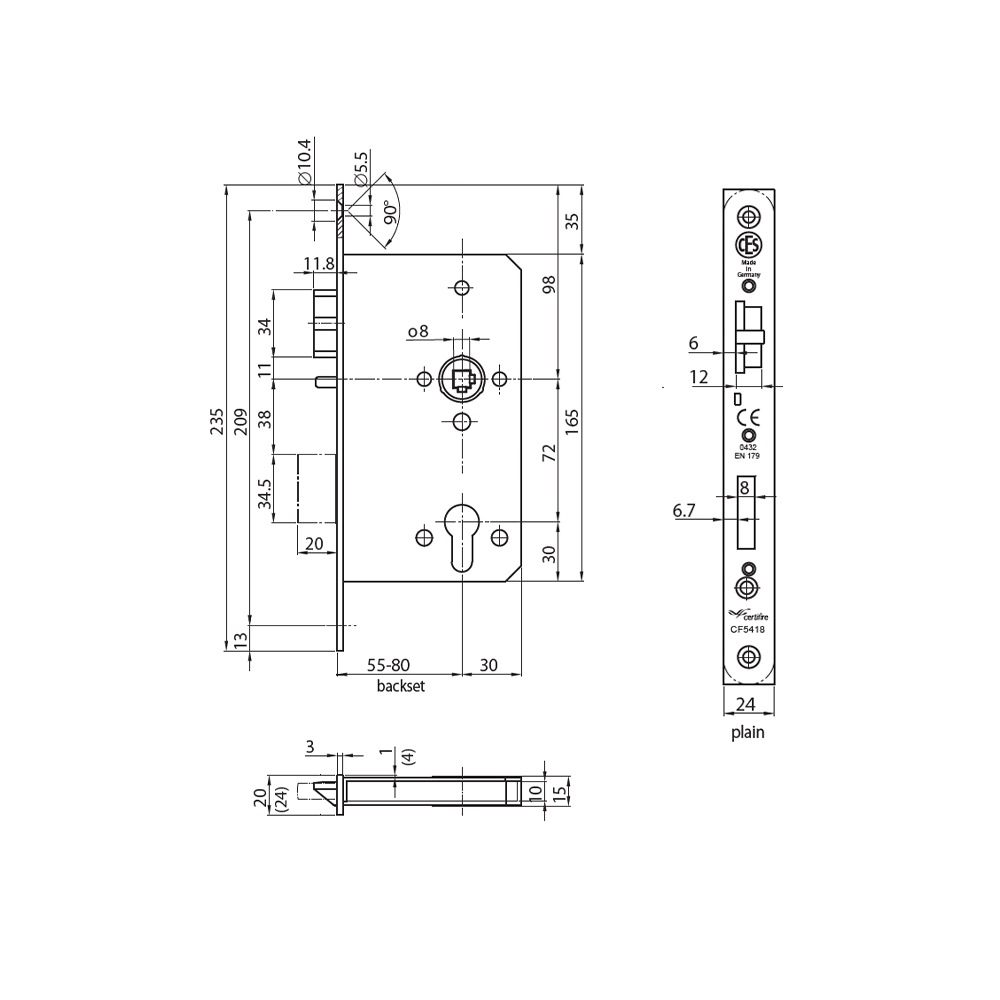

• Forend edged, Dim. 24 x 235 mm
• For flush doors
• Centre Distance 72mm
• Backset 55mm
• Bushed TENAX clamp follower 8mm, sintered steel
• Triple latchbolt sintered steel, nickel plated
• Deadbolt steel, nickel plated, double throw (20mm)
• For single-leaf fire rated doors
• With Striking Plate 0522, edged
• Screws included
• Fire Rated BS EN 1634-1, CE marked 0432-CPR-00292-02
• Fire Safety for Timber Doors: 30, 60, 90 and 120 minutes;
• Fire Safety for Steel Doors: 30, 60, 90, 120 and 240 minutes
• Made in Germany
